A bedsheet loom is a weaving machine used to produce flat-woven fabrics such as cotton, polyester, or blended textiles for bedding. The loom must handle:
✔ Fine, high-thread-count yarns (cotton, poly-cotton, linen, bamboo, etc.)
✔ Wide fabric production (up to 120 inches / 3 meters or more)
✔ Delicate weaving to ensure softness
✔ High-speed production for mass manufacturing
Common Weave Structures for Bedsheets
|
Item |

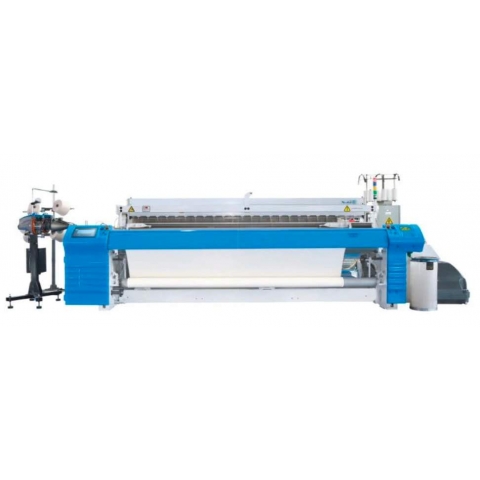

Lenado Air Jet Loom Specification |
|
|
Reed width |
Reed width |
150cm, 170cm, 190cm, 210cm, 230cm, 250cm, 280cm, 340cm, 360cm |
|
Working width |
Reed width minus 0-60 cm / 80 cm |
|
|
Weavable Range |
Spun: Ne100-Ne2.5 ; Filament: 56 dtex-1350 dtex |
|
|
Weft Selector |
1 color, 2 color mixing; 4 color or 6 color |
|
|
Beating |
4 link lever (narrow machine), 6 link lever (wide machine) |
|
|
Insertion |
Main nozzles and sub-nozzles |
|
|
Shedding |
Crank: 4 shafts heald frame |
|
|
Cam: 8 shafts heald frame |
||
|
Electronic dobby, max 20 shafts |
||
|
Electronic jacquard |
||
|
Let Off |
Electronic let off |
|
|
Take Up |
Electronic take up |
|
