Towel Jacquard Loom

Towel Jacquard

Detail

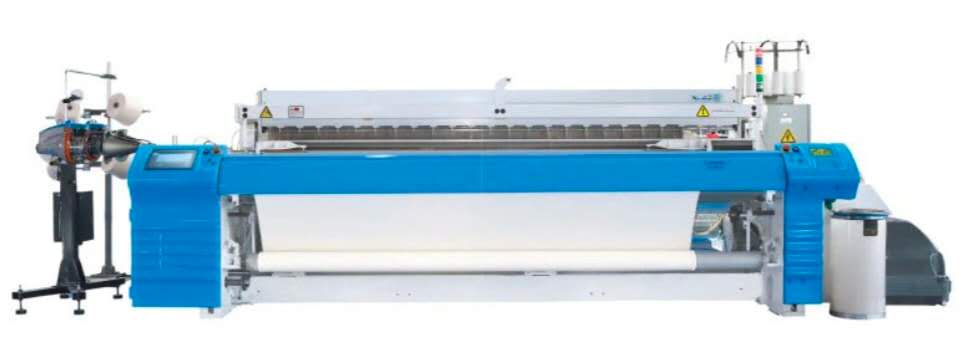

SKS-L3, Jacquard Air Jet Loom
it
 is a type of advanced weaving machine that combines Jacquard technology with air jet weft insertion to produce intricate and high-quality fabrics at high speed. Here’s a breakdown of its key components:



1.  Jacquard Mechanism

  • The Jacquard system controls individual warp threads, allowing for the creation of complex patterns and designs.
  • Unlike regular looms, which move entire groups of warp threads together, the Jacquard mechanism enables precise control over each thread.

2.  Air Jet Weft Insertion

  • Instead of using a shuttle or rapier to insert the weft yarn, the loom uses a high-speed air jet to propel the yarn through the warp.
  • This makes the process extremely fast, reducing mechanical wear and increasing efficiency.

3.  Advantages of Jacquard Air Jet Looms

  • High Speed: Faster than traditional shuttle or rapier looms.
  • Complex Designs: Can weave intricate patterns (like brocade, damask, and jacquard fabrics).
  • Smooth Fabric: Produces even and high-quality fabric with minimal defects.
  • Energy Efficient: Consumes less power compared to water jet looms (as it doesn’t require water).

4.  Applications

  • Used in fashion textiles, home furnishings, automotive fabrics, and technical textiles.
  • Common for producing luxury and decorative fabrics with intricate woven designs.

1

Width ( cm )

190, 210, 230, 260, 280, 300, 360, 380

2

Speed

300 - 500 RPM ( designed by material and width )

3

Raising Height

0 - 12 mm

4

Yarn Woven

Short fiber Nm4 - Nm200, long fiber tex 1.7 - tex 380

5

Weaving Adaptability

All kinds of terry towel productions

6

Down Warp Let-off

Weaving beam diameter Φ800 mm

7

Up warp Let-off

Weaving beam diameter Φ1000 mm

8

Let-off Method

Electronic let-off

9

Take-up Method

Electronic take-up

The machine can be installed in large volume,maximum diameter of 1500 mm

10

Drive

Super starter motor; direct drive stop by electromagnet brake

11

Open Device

Adopt electronic jacquard

13

Weft Variability

Self control by electronic let-off and electronic take-up, satisfied all kinds of terry towel productions

14

Weft Insertion

Main and sub-nozzles combined system, auxiliary main nozzle, profiled reed, stretch nozzle
