Tower Shearing Machine

Towel Shearing Machine

Detail

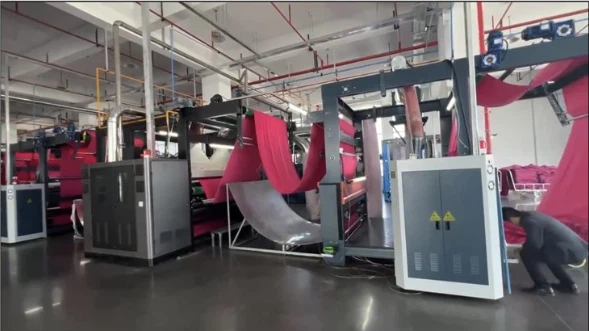

SKS-F3, Terry Towel Shearing Machine



Automatic shearing machine

The fully automatic shearing machine offers a solution that is not only more efficient but also more accurate.

One of the most significant benefits of this shearing machine is its ability to operate entirely autonomously. The machine can be pre-programmed to cut the towel's fur to specific lengths, eliminating the need for manual intervention. This also ensures that every towel is cut to the same standard, maintaining consistency and quality.

Moreover, the fully automatic shearing machine is equipped with advanced sensors, which enable it to detect any defects or impurities in the towel. The machine's software then adjusts itself accordingly, ensuring that the towel is processed correctly and defect-free.

Additionally, the machine's design is such that it can handle a wide range of towel sizes and thicknesses. This is possible due to its advanced cutting mechanisms, which are both gentle and precise, ensuring that the towel's integrity is maintained.

Furthermore, the fully automatic shearing machine is much faster than traditional methods, significantly reducing lead times and increasing production rates. This is made possible through advanced algorithms and software, which optimize the machine's performance and minimize downtime.

In conclusion, the fully automatic shearing machine is an innovation that will change the face of the textile industry. Its autonomous and precise operation, coupled with its ability to handle a wide range of sizes and thicknesses, will provide manufacturers with a reliable and efficient option for cutting towel fur.



 CONFIGURATION SHEET OF SHEARING MACHINE

Model

SKS-F3

Fabric

Knitting Fabric&Tatting Fabric

Nominal width

2800mm

Overall dimensions

Lenght 4000mm Width 5000mm Height 3400mm

Electricity supply

3x380v,1x220v,50Hz

Power

32.4kw

Compressed air supply

≥0.4Mpa

Control panel

1 set TFT colour screen 14"(touchscreen)at operatio



Speed



 0-50 m/min, drive with adjustable speed

Shaving cylinder

φ 185 mm

Shaving blade



right-hand wound

28 pcs

thickness 1 mm

Ledger blade

high capacity ledger blade in special quality

2200*125*4mm without holes

Shaving cylinder revolutions

0-1400rpm

controlled by inverter

Metal detector

yes

Center Correctiong machine

yes



seam detector

shearing automatically avoid the seam

detection distance 0-50mm

Spreading Roller before shearing

φ55mm

Collection Plate before shearing

yes

Pile height control

manual

Displayed through a dialgage

Blanket

1 set on the shaving cylinder Auto oil- filling



Dust removal

power 11kw

Front traction roller

1.5kw motor controlled by inverter

Rear traction roller

1.5kw motor controlled by inverter

Fabric swaying device

Independent control start-stop swing arm

outlet roller

1.5kw motor controlled by inverter

shaving cylinder motor

11kw motor controlled by inverter

Spreading Roller motor

2.2KW motor controlled by inverter

Lateral movement of shaving cylinder

0.18KW motor

Middle traction roller

1.5kw motor controlled by inverter
