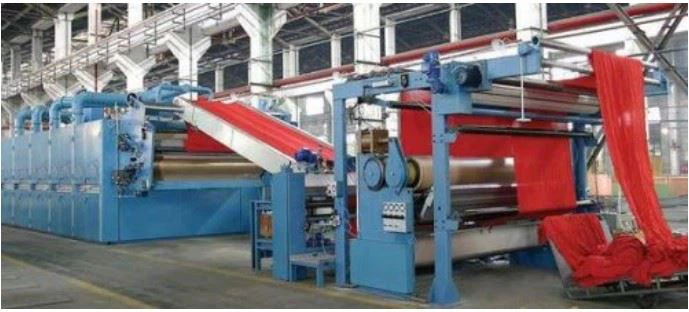

SKS-F01/ Tensionless Dryer with Tentering Unit

A Tensionless Dryer with Tentering Device is a specialized textile finishing machine used to dry fabrics while maintaining or enhancing their dimensional stability. It is commonly used in the textile industry for drying and finishing processes, ensuring the fabric does not become distorted or shrink during drying.

Key Components and Functions:

1. Tensionless Dryer:

   • Tensionless drying refers to the method in which fabric is dried without applying tension or stretching. This is crucial because tension can lead to distortions, such as fabric shrinkage, warping, or excessive elongation.
   • In a tensionless dryer, the fabric is supported by a circulating air stream or a series of rollers that guide it through the drying process, maintaining the fabric's natural shape without applying pulling force.

2. Tentering Device:

   • The tentering device is a mechanism used to control the fabric's width during the drying process. It ensures that the fabric is kept at a uniform width while passing through the dryer.
   • The tentering device consists of a pair of clips or clips on either side of the fabric. These clips hold the fabric's edges while it moves through the dryer. This helps the fabric maintain its shape, prevents shrinkage, and ensures consistent width.
   • The tentering device also plays a role in controlling fabric tension to avoid distortion during drying.

How It Works:

• Fabric Feeding: The fabric enters the dryer and is fed onto a conveyor belt or rollers.
• Clipping/Pinning: As the fabric moves through the system, its edges are clipped by the tentering device. This prevents the fabric from shrinking or becoming misshapen.
• Drying: The fabric is dried using a combination of heated air, steam, or other drying methods. The tensionless drying ensures the fabric does not undergo unnecessary stretching or distortion during this process.
• Continuous Process: The fabric passes through the system continuously, with the tensionless dryer and tentering device working together to ensure consistent drying and shape retention.

Benefits of a Tensionless Dryer with Tentering Device:

1. Prevents Shrinkage: The fabric is not subjected to excessive tension, preventing shrinkage or stretching.
2. Maintains Uniform Width: The tentering device ensures that the fabric remains at a consistent width, avoiding distortion.
3. Improved Fabric Quality: The tensionless drying process helps preserve the fabric’s texture, appearance, and overall quality.
4. Energy Efficiency: These systems are often designed for efficient drying, which reduces energy consumption.

Applications:

• Textile Industry: Widely used for drying various types of fabrics, including woven, knitted, and nonwoven materials.
• Finishing Process: Especially useful in finishing processes where fabric stability, smoothness, and uniformity are critical.

In conclusion, a Tensionless Dryer with Tentering Device is a critical piece of equipment in the textile finishing process, offering precise control over fabric shape, quality, and drying efficiency, making it essential for producing high-quality finished textiles.
