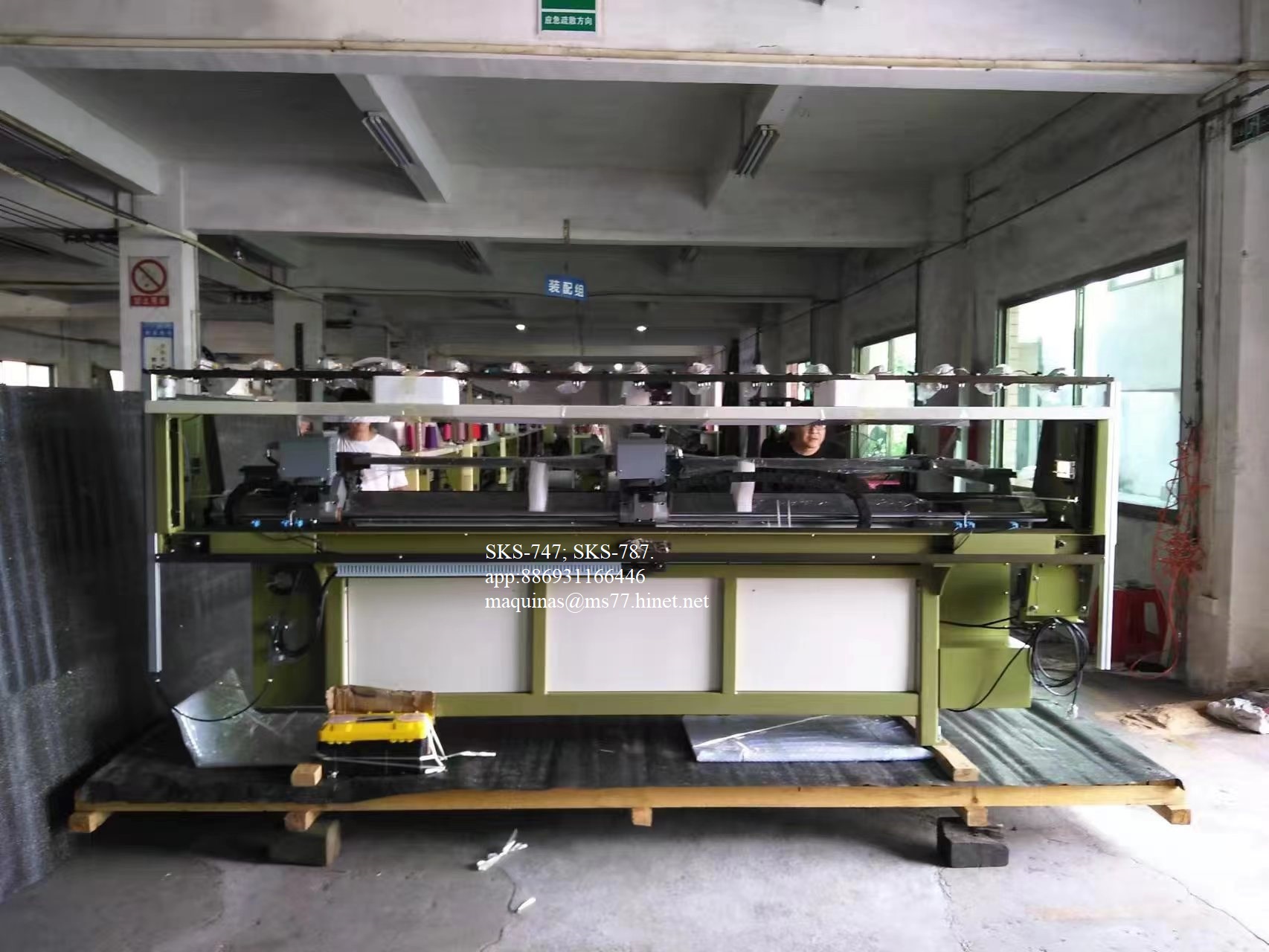

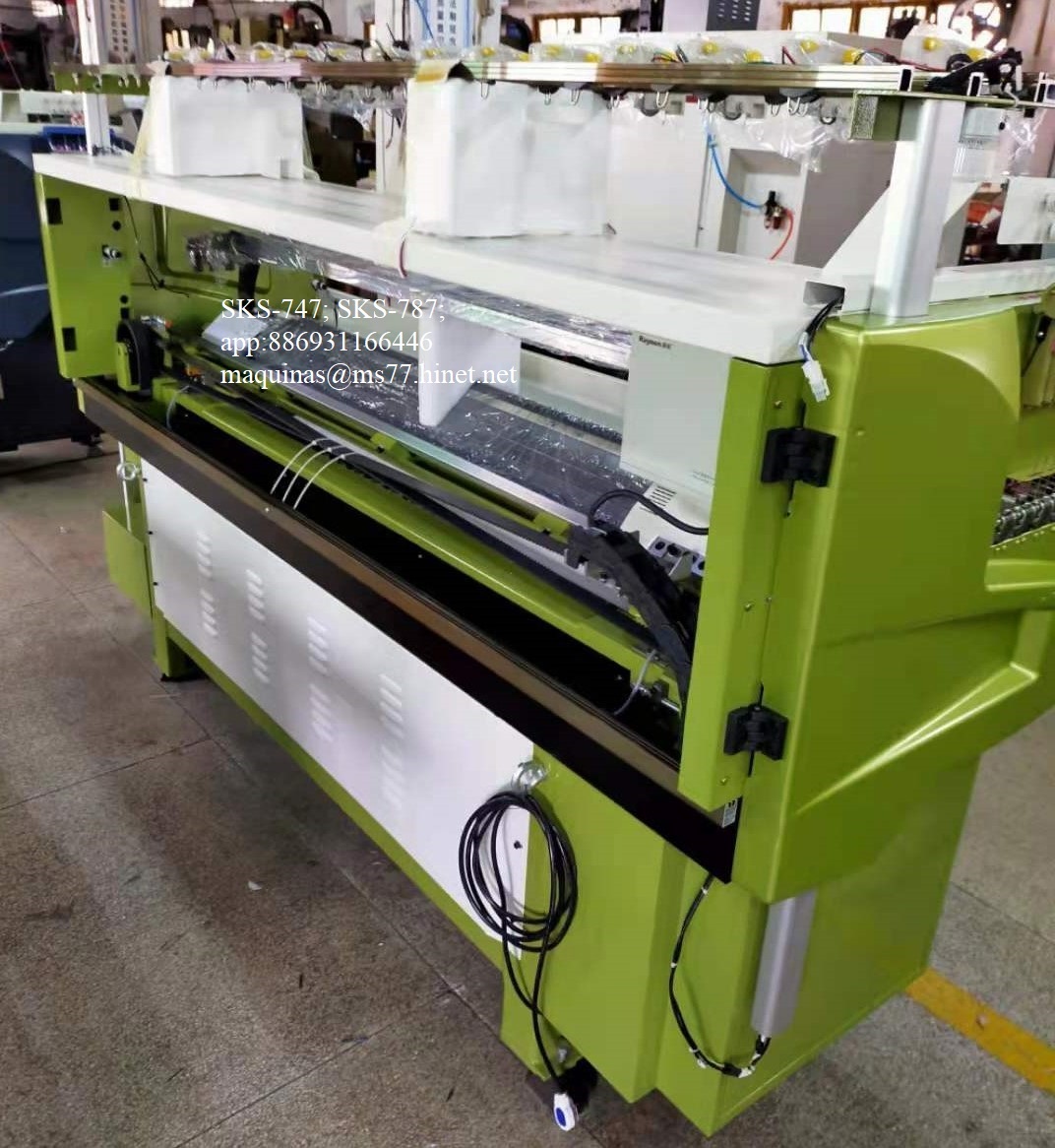

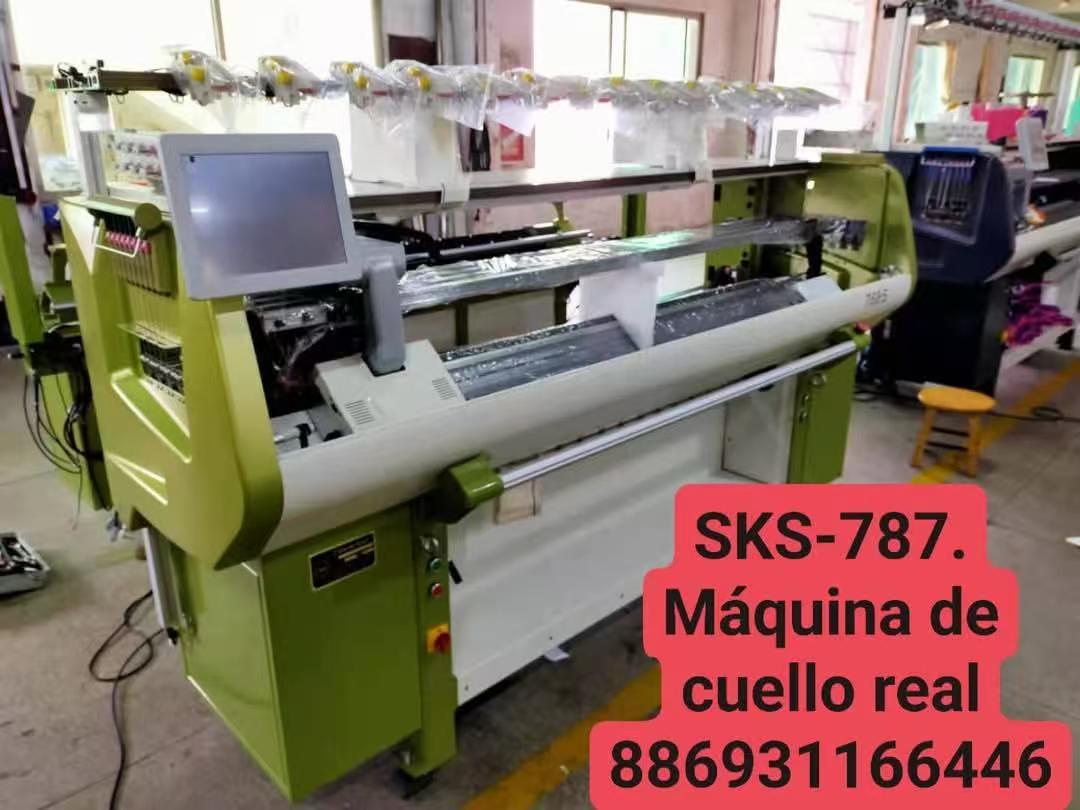

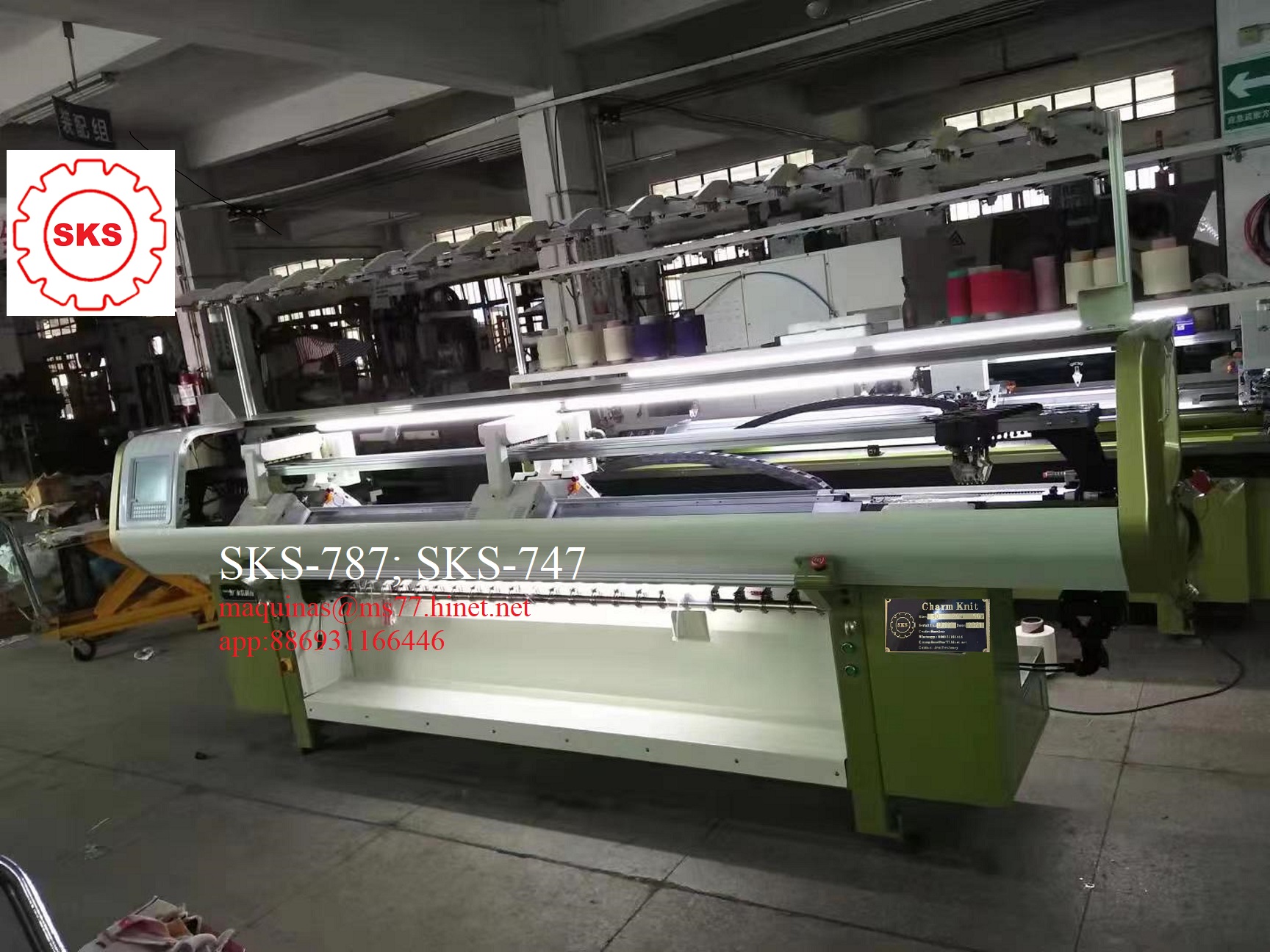

Jacquard Collar Machine SKS-757C

Detail






SKS-757C

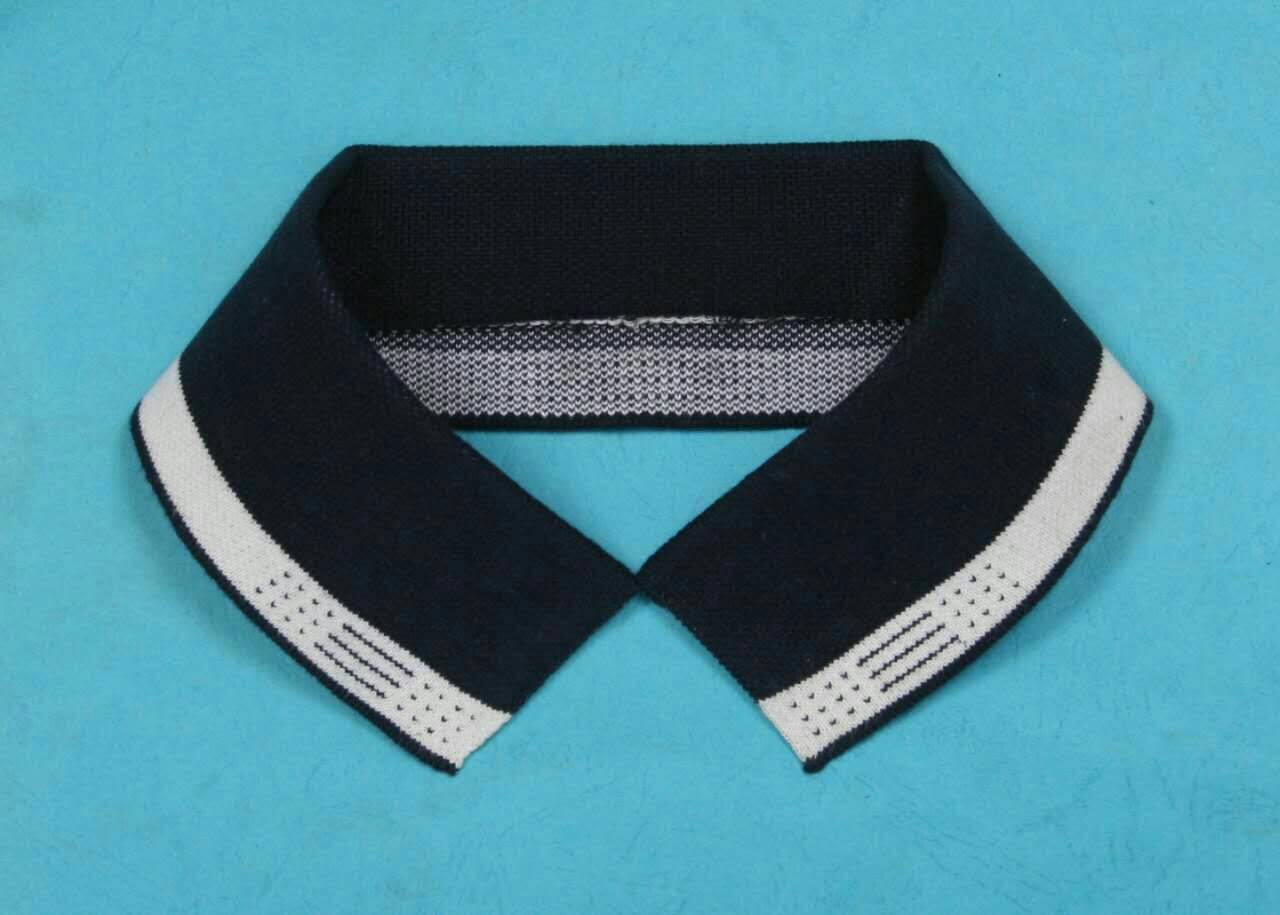

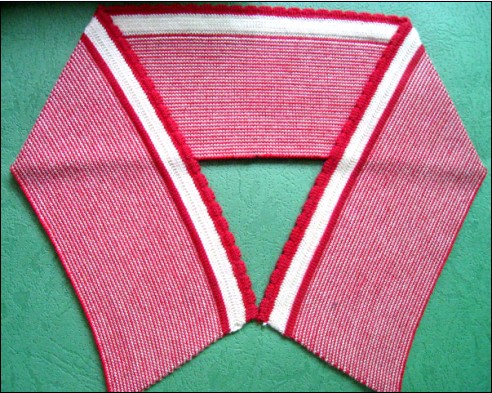

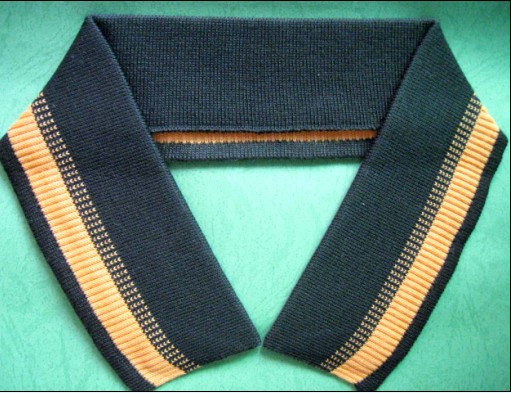

Collar Fully Jacquard flat knitting machine.
Function: Fully Jacquard type.
Application: Fully Jacquard Collar flat knitting machine.

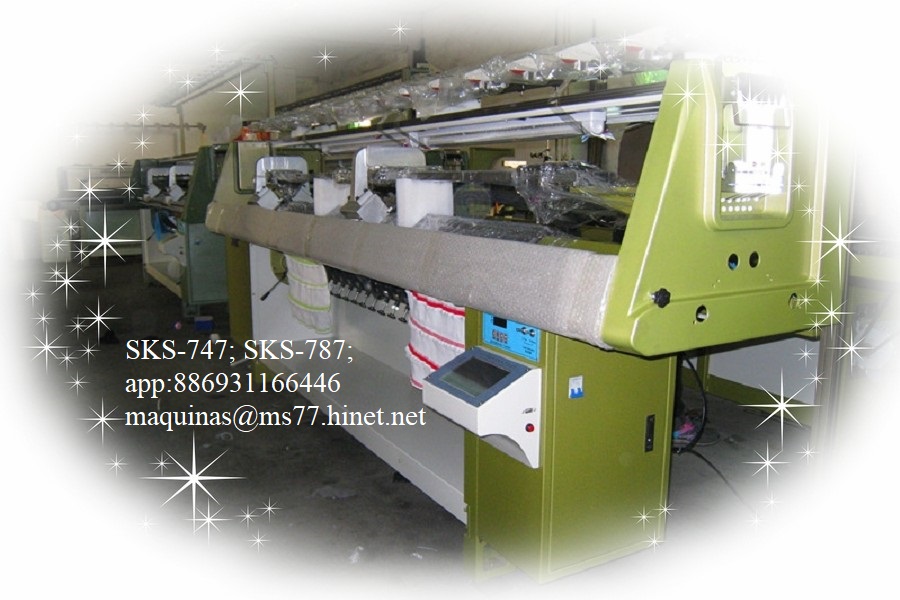

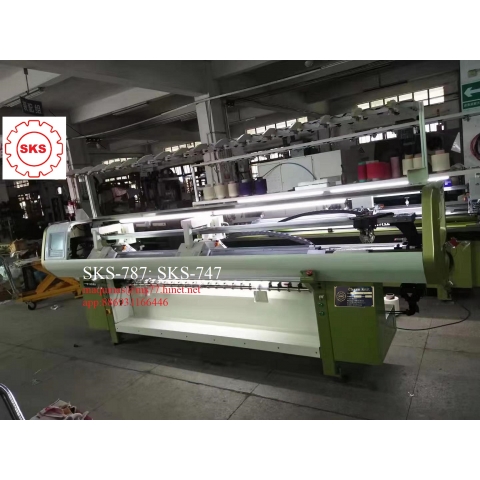

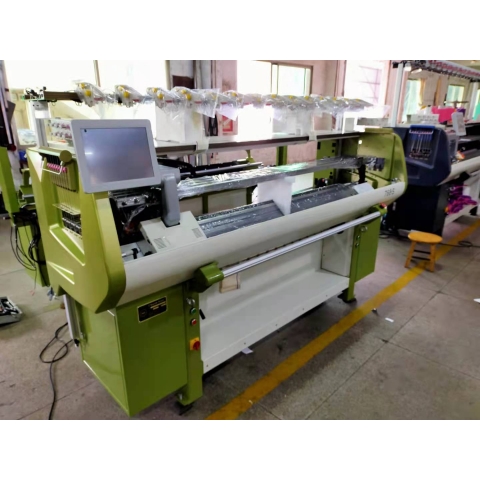

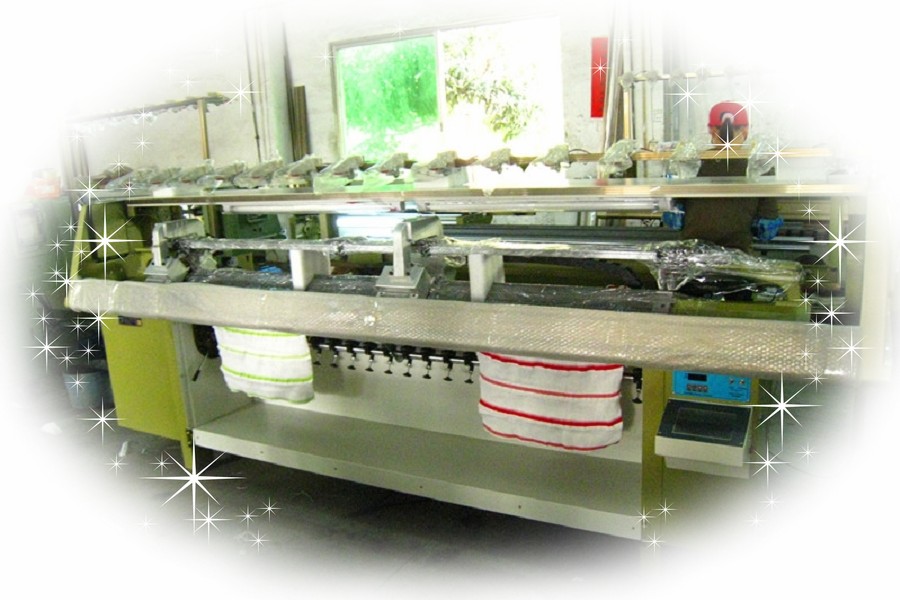

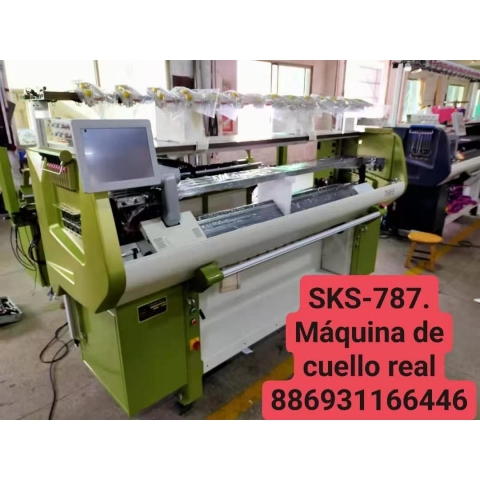

SKS-757C Double System Computerized Flat Knitting Machine Series

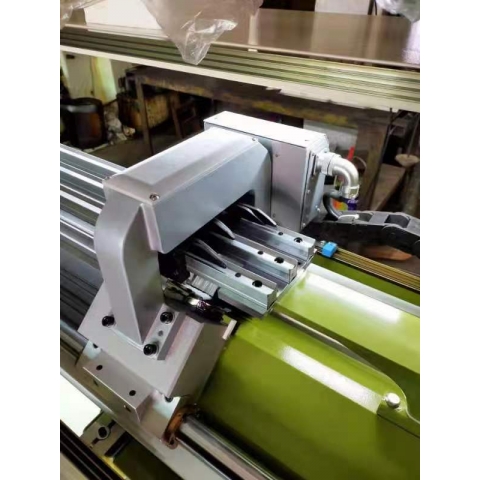

  • The fast cornering of carriage. Superior servo drive assembly makes the fast cornering of carriage came true, improved the efficiency of knitting more than 10%
  • Well-designed angle of needle bed tooth mouth to ensure rapid antonomous falling of fabrics
  • Duplex table technique of thick needle, fulfilling double distance and expanding table scope significantly
  • Triangle baseboard, adopting precise forging materials with the most superior quality, some are produced by Taiwan Manufacturer according to our brand new design program with optimized degree of surface pressure, making surface of fabrics more even,density more proper and knitting more smooth.

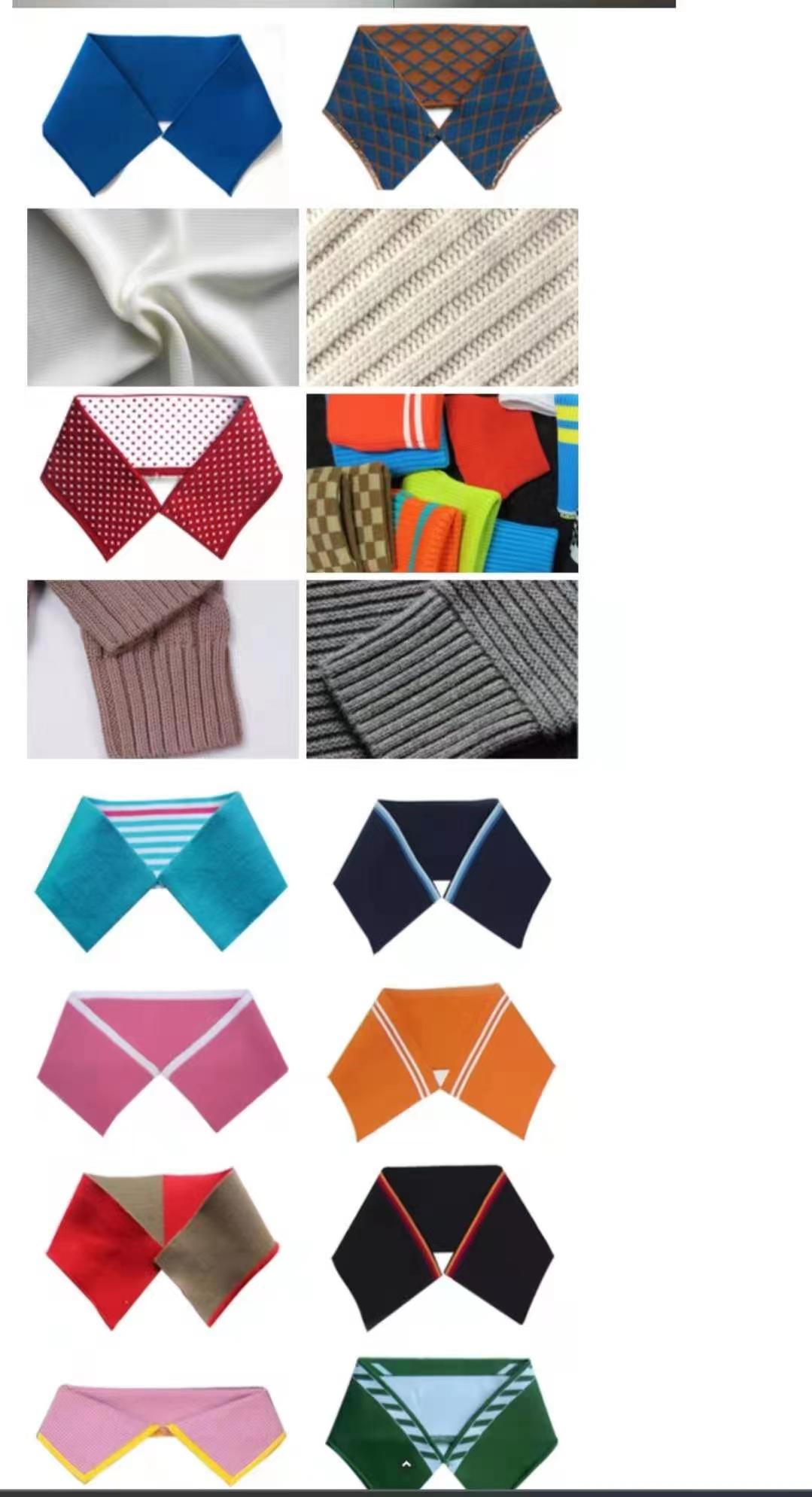

SKS-757C also can knit Fully Jacquard Sweater






#SKS-757 / Specification
Gauge 14G/16G/18G/20G
Width 36" / 52" / 80"
System System for Collar
Speed Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s.
Function Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Actuator  Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.
Stitch  Controlled by stepping motor, 32 section stitch selectable adjustable range supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Transfer Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer , another cam system for knitting, which will achieve high-volume production.
Sinker system Controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Comb   Grip or knock-over the yam reliably（Optional)
Cutters
Grippers		 Include 2 cutters and 4 grippers, controlled by 6 motors respectively（Optional)
Take-down  Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100
Color-changing system 2×8 yarn feeders on each side of 4 guide rails, shiftable on any needle position.
Protection system The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system
  1. LCD industrial display, Can display various parameters, which can be adjustable during operation.
  2. USB memory interface,System memory 1G.
  3. Free design system is visual and easy to understand and software upgrade free of charge.
  4. Support multi-language operation as Chinese and English, Spanish, Russian etc.
Network function Has network interface,enable remote-monitoring via network, and connecting with ERP system.
